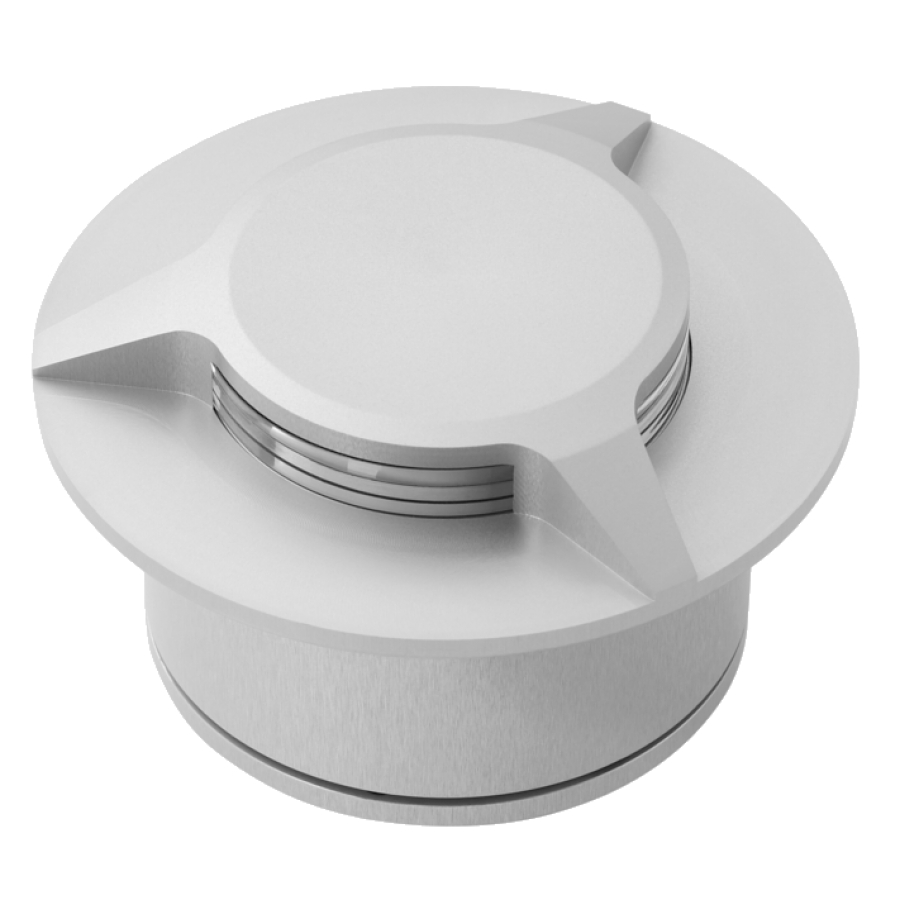

VEHICLE ACCESSIBLE RECESSED LED PROJECTOR
OUTSTEP is a vehicle accessible recessed LED projector with three side light beams.
Use: Outdoor.
Application: Close to the ground lighting effect.
| CODE | FINISHING | BEAM ANGLE |
LIGHT COLOUR* AND FLUX | SUPPLY AND POWER |
| 4.CR03.822.070 | Anodized Al | 360° | 822 - 285..511lm | 350..700mA - 3,0..6,0W |
| 4.CR03.827.070 | Anodized Al | 360° | 827 - 325..580lm | 350..700mA - 3,0..6,0W |
| 4.CR03.830.070 | Anodized Al | 360° | 830 - 420..775lm | 350..700mA - 3,0..6,0W |
| 4.CR03.840.070 | Anodized Al | 360° | 840 - 450..825lm | 350..700mA - 3,0..6,0W |
| 4.CR02.822.070 | Anodized Al | 240° | 822 - 190..340lm | 350..700mA - 1,0..4,0W |
| 4.CR02.827.070 | Anodized Al | 240° | 827 - 216..386lm | 350..700mA - 1,0..4,0W |
| 4.CR02.830.070 | Anodized Al | 240° | 830 - 280..516lm | 350..700mA - 1,0..4,0W |
| 4.CR02.840.070 | Anodized Al | 240° | 840 - 300..550lm | 350..700mA - 1,0..4,0W |
| 4.CR01.822.070 | Anodized Al | 120° | 822 - 63..113lm | 350..700mA - 1,0..2,0W |
| 4.CR01.827.070 | Anodized Al | 120° | 827 - 72..128lm | 350..700mA - 1,0..2,0W |
| 4.CR01.830.070 | Anodized Al | 120° | 830 - 93..172lm | 350..700mA - 1,0..2,0W |
| 4.CR01.840.070 | Anodized Al | 120° | 840 - 100..183lm | 350..700mA - 1,0..2,0W |
* See Appendix A for colour rendering and colour temperature.
