MINIMALISTIC LED WALL LIGHT FOR OUTDOORS

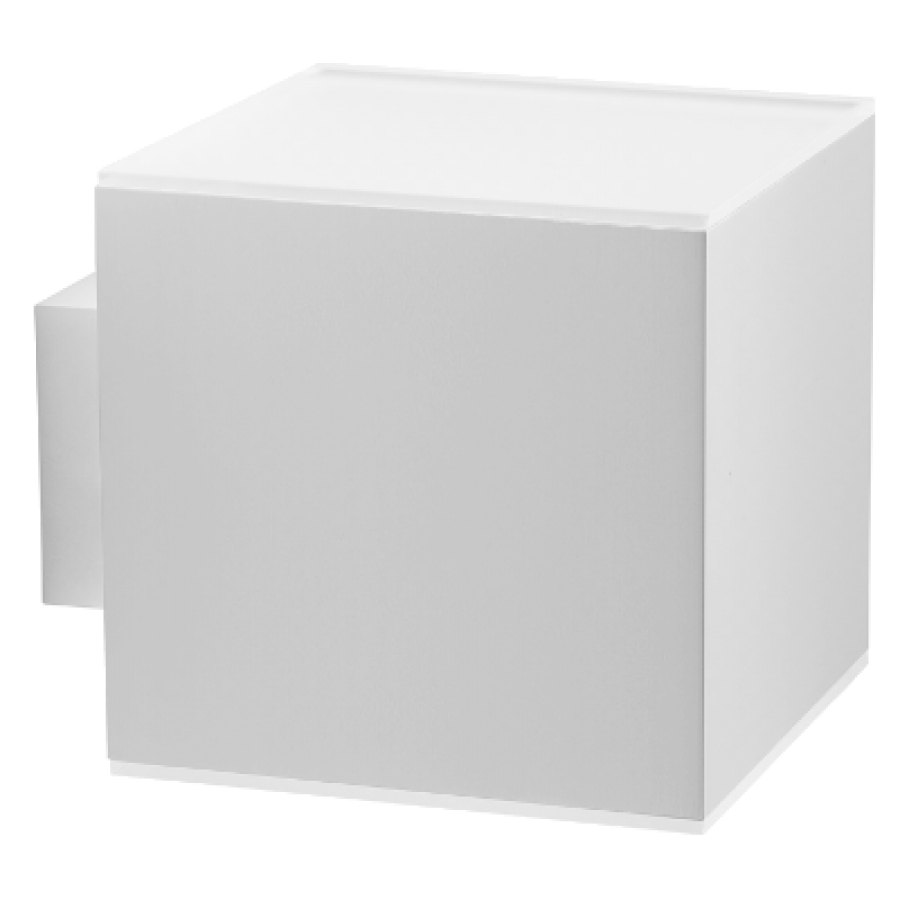

CUBO is a minimalistic LED wall lamp for outdoors with a double beam of light.
Use: Outdoor
Application: Lighting of porticos, outdoors facades, gazebos, hallways, mansard attics etc.
| CODE | FINISHING | BEAM ANGLE** | LIGHT COLOUR* AND FLUX | SUPPLY AND POWER*** |
| 4.QB10.S.830.230 | Anodized Al - PMMA | 15° Down + 15° Up | 830 - 2050lm | 230Vac - 20W |
| 4.QB10.M.830.230 | Anodized Al - PMMA | 35° Down + 35° Up | 830 - 2050lm | 230Vac - 20W |
| 4.QB10.WS.830.230 | Anodized Al - PMMA | 120° Down + 15° UP | 830 - 2050lm | 230Vac - 20W |
| 4.QB10.WM.830.230 | Anodized Al - PMMA | 120° Down + 35° UP | 830 - 2050lm | 230Vac - 20W |
| 4.QB10.W.830.230 | Anodized Al - PMMA | 120° Down + 120° UP | 830 - 2050lm | 230Vac - 20W |
| 4.QB10.S.840.230 | Anodized Al - PMMA | 15° Down + 15° Up | 840 - 2200lm | 230Vac - 20W |
| 4.QB10.M.840.230 | Anodized Al - PMMA | 35° Down + 35° Up | 840 - 2200lm | 230Vac - 20W |
| 4.QB10.WS.840.230 | Anodized Al - PMMA | 120° Down + 15° UP | 840 - 2200lm | 230Vac - 20W |
| 4.QB10.WM.840.230 | Anodized Al - PMMA | 120° Down + 35° UP | 840 - 2200lm | 230Vac - 20W |
| 4.QB10.W.840.230 | Anodized Al - PMMA | 120° Down + 120° UP | 840 - 2200lm | 230Vac - 20W |
* See Appendix A for colour rendering and colour temperature
** Also available in the SM, SW, MS, MW versions.
*** 24Vdc, 48Vdc and 700mA version available on request.
